In the world of precision engineering and plumbing, few measurements are as common—yet as frequently misunderstood—as the National Pipe Taper (NPT) standard. If you have ever held a small threading tool in your hand and wondered exactly what size is 1 8 npt pipe tap, you are not alone. Despite the name, this tap does not measure 1/8 of an inch in diameter. In fact, understanding the physical dimensions of this tool is critical for ensuring leak-proof seals in high-pressure gas and liquid systems.
As we move through 2026, the demand for precision machining in the automotive and aerospace sectors has made the 1 8 npt pipe tap a staple in every professional toolkit. This article provides an exhaustive technical breakdown of its dimensions, drill bit requirements, and application techniques.
National Pipe Thread Technical Index
- 1. Understanding the NPT Standard: More Than a Number
- 2. Precise Dimensions: What size is 1 8 npt pipe tap?
- 3. Manufacturer Spotlight: MisolGroup Threading Excellence
- 4. Selecting the Correct Drill Bit for a 1 8 NPT Tap
- 5. Machining Best Practices for Tapered Threads
- 6. Summary Table: 1 8 NPT Technical Specifications
- 7. Frequently Asked Questions (FAQs)
- 8. Industrial References and Standards
1. Understanding the NPT Standard: More Than a Number
The 1 8 npt pipe tap is a tool used to create internal threads for a pipe with a 1/8-inch nominal inside diameter. The term nominal is the source of confusion for many. In the early days of pipe manufacturing, a 1/8-inch pipe actually had a 1/8-inch interior opening. However, as metallurgy improved and pipe walls became thinner to handle higher pressures, the outside diameter remained constant to ensure compatibility with existing fittings, while the interior hole grew larger.
Today, the 1 8 npt pipe tap produces a thread that is tapered at a rate of 1/16 inch of diameter per inch of length. This taper is what creates a mechanical seal by crushing the male and female threads together, often supplemented by thread sealant or Teflon tape. This is fundamentally different from straight threads (like bolt threads), which require a gasket or O-ring to prevent leaks.
2. Precise Dimensions: What size is 1 8 npt pipe tap?
If you were to take a pair of digital calipers to a 1 8 npt pipe tap, you would find that the major diameter at the large end of the taper is approximately 0.405 inches (10.29 mm). This is nearly three times the size of a standard 1/8-inch bolt. The thread pitch for this specific size is 27 threads per inch (TPI). This fine pitch is necessary to provide enough thread engagement in the thin walls of small pipes and fittings.
The tool itself is designed with a specific length of thread to allow for the proper “hand-tight” engagement followed by “wrench-tight” turns. For a 1 8 npt pipe tap, the effective thread length is typically around 0.26 inches, though the overall length of the tap will vary depending on the manufacturer and the series of the tool.
MisolGroup: Excellence in Thread Cutting Tools
Since our founding in 2005, MisolGroup has established itself as a leading Chinese manufacturer of high-performance thread cutting tools, integrating R&D, production, and global sales into a seamless operation. We understand that whether you are using a 1 8 npt pipe tap for a simple repair or a high-volume production run, the quality of the steel and the precision of the grind are non-negotiable.

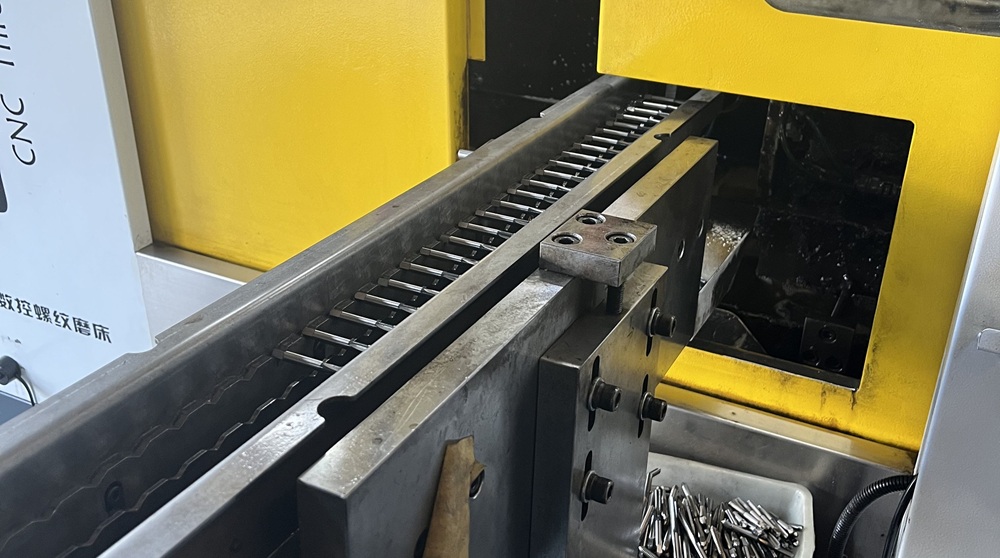

Advanced Manufacturing & Uncompromising Quality
Our commitment to excellence is embedded in our manufacturing process. We use high-grade high-speed steels (HSS) like M35, DV3, and M2 to produce durable premium taps that ensure superior performance and longer tool life. Our threading tools are optimized to excel across a wide range of applications, including Automotive, Aerospace, and Mold & Die Manufacturing.
Our Professional Product Catalog:
- (10S-529) standard series: Reliable taps for general purpose carbon steel and cast iron.
- DIN371 German industrial standard: Precision taps for the European market, offering exceptional tolerance control.
- JlS spiral groove tap series: Ideal for blind holes and gummy materials like stainless steel where chip evacuation is critical.
4. Selecting the Correct Drill Bit for a 1 8 NPT Tap
Because the 1 8 npt pipe tap is tapered, choosing the correct pilot hole size is slightly more complex than for straight threads. If the hole is too small, you risk breaking the tap; if it is too large, you will not have enough thread depth to create a pressure-tight seal. The industry standard drill bit for a 1 8 npt pipe tap is a letter R drill (0.3281 inches) or a 21/64 inch drill bit.
In high-precision 2026 manufacturing environments, many machinists prefer to use a reamer after drilling to create a tapered hole that matches the tap. This reduces the torque required to turn the tap and significantly extends the tool life, especially when working with difficult materials like 316 stainless steel or Inconel.
5. Machining Best Practices for Tapered Threads
Using a 1 8 npt pipe tap requires a different approach than standard tapping. Since the tap gets wider as it goes deeper, the torque increases exponentially the further you turn. Here are the professional steps to ensure success:
- Use High-Quality Lubricant: Never tap dry. For HSS taps from MisolGroup, use a sulfur-based cutting oil for steel or a specialized non-ferrous fluid for aluminum.
- Monitor Depth: Do not run the tap all the way in until the threads disappear. NPT fittings are designed to have a specific number of threads showing when hand-tight. Usually, 4 to 5 full turns of the tap into the workpiece is sufficient.
- Chip Breaking: For manual tapping, turn the tap half a turn forward and a quarter turn back to break the chips. This prevents the grooves from clogging and tearing the threads.
- Alignment: Ensure the tap is perfectly perpendicular to the surface. A crooked NPT thread is almost guaranteed to leak, regardless of how much sealant you apply.
6. Summary Table: 1 8 NPT Technical Specifications
| Specification | Measurement (Imperial) | Measurement (Metric) |
|---|---|---|
| Nominal Pipe Size | 1/8 inch | 3.175 mm |
| Pipe Outside Diameter | 0.405 inches | 10.29 mm |
| Threads Per Inch (TPI) | 27 | 0.941 mm pitch |
| Recommended Drill Bit | 21/64 inch (or Letter R) | 8.40 mm |
| Tap Major Diameter (Large End) | 0.405 inches | 10.29 mm |
7. Frequently Asked Questions (FAQs)
Is 1/8 NPT the same as 1/8 BSP?
No. This is a common mistake. NPT (National Pipe Taper) has a 60-degree thread angle and 27 TPI. BSP (British Standard Pipe) has a 55-degree thread angle and 28 TPI. They are not compatible and attempting to force them together will destroy the threads and cause leaks.
Can I use a 1 8 npt pipe tap for plastic?
Yes, but you must be careful. Plastic expands and contracts differently than metal. It is often better to use a tap specifically ground for plastics or to reduce the tapping depth slightly to ensure the fitting stays tight over time.
What is the difference between NPT and NPTF?
NPT requires sealant. NPTF (National Pipe Taper Fuel) is designed to be a Dryseal thread. The peaks and valleys of the threads are designed to interfere and crush into each other, creating a leak-proof seal without the need for tape or paste, though NPTF taps are more expensive and require tighter tolerances.
Why is my 1 8 npt pipe tap made of HSS-Co M35?
M35 high-speed steel contains 5% cobalt. This increases the red hardness of the tool, allowing it to maintain a sharp edge even when generating significant heat while tapping hard materials like stainless steel or heat-treated alloys.
