1. Understanding NPT Threads
NPT (National Pipe Taper) threads are a standard for tapered pipe threads used primarily in the United States and globally recognized under ANSI/ASME B1.20.1. The tapered profile ensures tight sealing without requiring an O-ring when used with sealant compounds.
Key Features of NPT Threads:
- 60° thread angle
- 1 in 16 taper (3.58° included angle)
- Leak-free seal under pressure
- Commonly used in gas, hydraulic, and pneumatic systems
Understanding these specifications helps ensure accurate tap and die selection, preventing cross-threading and leakage during assembly.
2. 1/8 NPT Thread Tap Dimensions in mm
Although the 1/8 NPT thread system originates from imperial measurements, most global manufacturers, including those in Europe and Asia, use millimeter units. The following table lists the 1/8 NPT thread tap dimensions in mm, converted and verified from ANSI standards.
| Parameter | Symbol | Value (Inches) | Value (mm) | Description |
|---|---|---|---|---|
| Nominal Pipe Size | – | 1/8 | 3.175 | Nominal designation, not actual OD |
| Threads per Inch | TPI | 27 | – | Number of threads per inch |
| Pitch | P | 1/27 | 0.941 | Distance between adjacent threads |
| Tap Drill Size | – | Q (0.332 in) | 8.43 | Recommended drill before tapping |
| Outside Diameter (Major Dia) | OD | 0.405 | 10.29 | Largest thread diameter |
| Hand Tight Engagement | L1 | 0.263 | 6.68 | Length of thread engagement by hand |
| Wrench Tight Engagement | L2 | 0.195 | 4.95 | Additional thread engagement using a wrench |
| Taper per Inch | – | 1 in 16 | 3.5789° | Thread taper angle |
Note: The actual engagement and thread depths depend on the tap geometry and material hardness of the workpiece.
3. Tap Specifications and Standards
The 1/8 NPT tap follows the ASME B1.20.1 standard for pipe threads. Taps are available in straight flute, spiral flute, and spiral point designs, depending on the cutting direction and hole type.
Standard Thread Form
- Thread angle: 60°
- Taper: 1:16 (3.5789° included)
- Flat root and crest
- Truncated form for better chip clearance
Tap Types for 1/8 NPT
- Taper Tap: Long lead for easy start, used for through-holes.
- Plug Tap: Medium lead, used for most applications.
- Bottoming Tap: Short lead for blind holes where thread depth is critical.
4. Applications of 1/8 NPT Taps
The 1/8 NPT tap is commonly used across industries for creating female threads in fittings and manifolds that require tight sealing. These include:
- Pneumatic systems — valves, gauges, air compressors
- Hydraulic systems — fluid connectors and ports
- Automotive systems — oil pressure sensors, fuel fittings
- Manufacturing — precision equipment, pipe threading
- Instrumentation — control and measurement systems

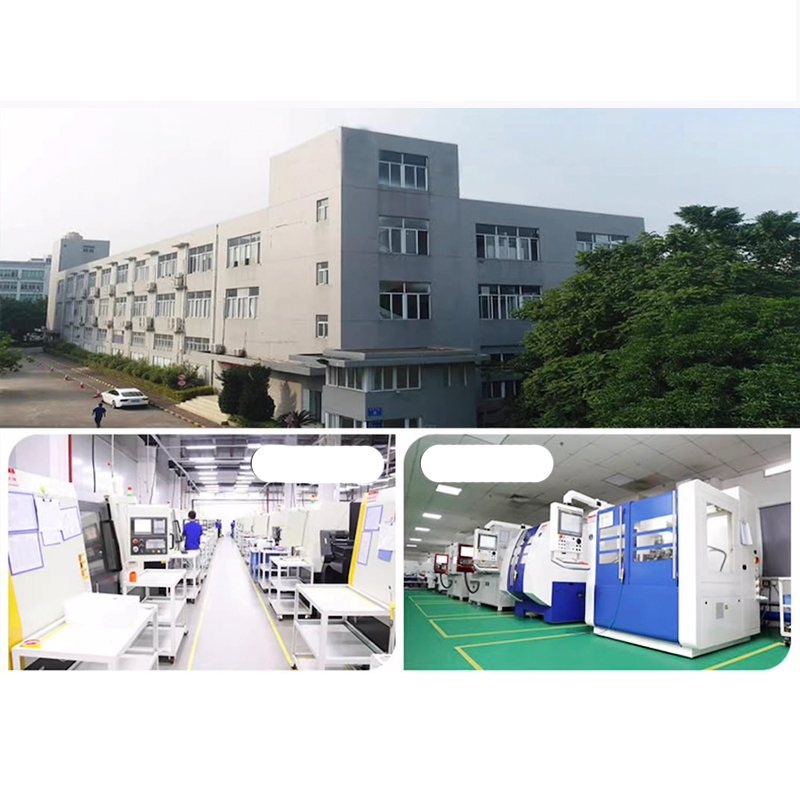

5. About MisolGroup
MisolGroup has been a leading Chinese manufacturer of thread cutting tools since 2005, integrating R&D, production, and sales for the global market. Over nearly two decades, MisolGroup has established a reputation for quality, precision, and innovation in the tooling industry.
6. Manufacturing Excellence
MisolGroup’s success is built upon technological excellence and continuous quality control. The company operates a fully automated facility with advanced process integration.
Key Highlights:
- Full in-house production using advanced CNC automation
- Vacuum heat treatment and precision testing facilities
- ISO-certified quality management system ensuring global compliance
Premium Material Selection
MisolGroup uses high-speed steels (HSS) like M35, DV3, and M2 to ensure durability and cutting precision across diverse materials such as carbon steel, stainless steel, and non-ferrous alloys. This results in tools that maintain sharpness and surface quality even after extended use.
7. Product Range Overview
MisolGroup provides a comprehensive lineup of threading solutions for industrial and manufacturing applications.
- Carbide Taps: Designed for high-speed applications and hard materials such as stainless steel and titanium.
- Nut Taps: Used for producing threads inside nuts or deep holes.
- Pipe Taps: Ideal for threading pipe fittings that require airtight or watertight seals.
- Spiral Flute Taps: Best for blind holes; they efficiently evacuate chips upward.
- Spiral Point Taps: Suitable for through-holes where chips can exit forward.
- Straight Flute Taps: Used for general-purpose threading in a variety of materials.
8. Choosing the Right Tap for NPT Threads
Important Selection Criteria
- Material Hardness: Match tap material to workpiece strength.
- Coolant Use: Use proper lubrication to reduce wear.
- Thread Engagement: Ensure sufficient taper depth (1:16 ratio).
- Hole Type: Choose spiral flute for blind holes, spiral point for through holes.
- Production Volume: For high output, use coated carbide taps for longevity.
Pro Tip: Always verify the tapped thread using ANSI/ASME B1.20.1 NPT gauges to ensure accurate sealing and thread engagement.
9. Summary Table
| Parameter | Symbol | Metric Value (mm) | Notes |
|---|---|---|---|
| Nominal Pipe Size | – | 3.175 | Equivalent to 1/8 inch |
| Outside Diameter | OD | 10.29 | Major thread diameter |
| Pitch | P | 0.941 | Thread pitch (27 TPI) |
| Taper | – | 1:16 | Standard NPT taper ratio |
| Thread Angle | α | 60° | Included thread angle |
| Tap Drill Size | – | 8.43 | Equivalent to drill “Q” |
| Hand Tight Engagement | L1 | 6.68 | Initial sealing distance |
| Wrench Tight Engagement | L2 | 4.95 | Additional tightening |
10. Frequently Asked Questions (FAQs)
1. What is the taper angle of 1/8 NPT tap?
The taper angle is 1°47′24″ per side, giving an included angle of approximately 3.58°.
2. What drill size should I use for a 1/8 NPT tap?
The recommended drill size is Q (8.43 mm) before tapping.
3. What is the difference between NPT and BSPT taps?
NPT taps have a 60° thread angle and inch-based pitch, while BSPT taps have a 55° Whitworth thread form. They are not interchangeable.
4. Which materials are suitable for NPT tapping?
Most metals including carbon steel, aluminum, stainless steel, and brass are suitable when using the correct HSS or carbide tap.
5. Does MisolGroup produce 1/8 NPT taps?
Yes. MisolGroup manufactures high-precision 1/8 NPT taps and other threading tools meeting global standards for industrial and custom applications.
