Introduction to Thread Cutting Taps
Thread cutting taps are essential tools in machining, used to create internal threads in holes for bolts, screws, and other fasteners. Choosing the right tool from the various types of thread cutting taps ensures precise, clean, and durable threads in different materials.
A tap works by removing material while rotating, cutting the helical groove that forms the thread. The performance, accuracy, and lifespan of each tap depend on its design, flute geometry, and material composition.
Understanding the types of thread cutting taps helps engineers, machinists, and manufacturers optimize productivity and quality.

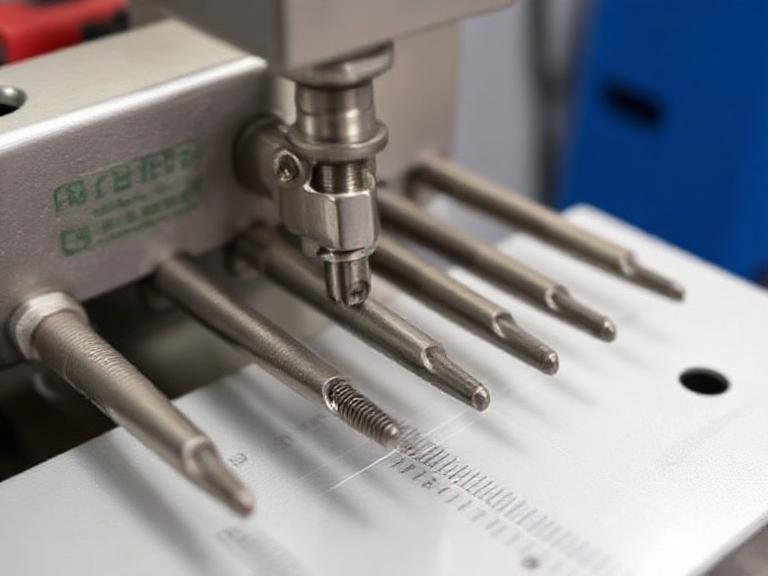

The 4 Main Types of Thread Cutting Taps
There are several types of thread cutting taps, each engineered for specific materials and hole types. The four primary varieties are: Spiral Flute Taps, Spiral Point Taps, Straight Flute Taps, and Pipe Taps. Understanding their design and purpose ensures you select the right tool for the job.
1. Spiral Flute Taps
Spiral flute taps, one of the most common types of thread cutting taps, feature helical flutes similar to a drill. These flutes lift chips out of the hole during threading, making them ideal for blind holes (holes that do not pass through the material). The spiral design prevents chip packing and reduces the risk of breakage.
They are especially suitable for cutting threads in soft materials such as aluminum and copper alloys. The spiral angle can vary between 15° and 45°, influencing how chips are ejected and how the tap performs in different depths.

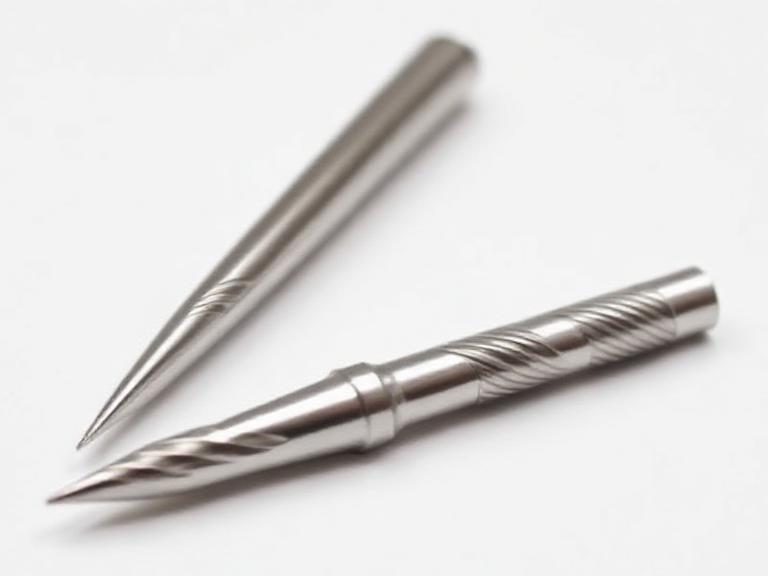

2. Spiral Point Taps (Gun Taps)
Spiral point taps, often called “gun taps,” push chips forward rather than pulling them out. This makes them perfect for through holes, where chips can exit from the opposite side. Among the types of thread cutting taps, spiral point taps are known for their strength and durability.
They work exceptionally well with steel and hard materials, providing excellent performance at high speeds. Their cutting edges are designed to minimize friction and extend tool life, which is ideal for production environments.
3. Straight Flute Taps
Straight flute taps are the traditional and simplest types of thread cutting taps. With straight flutes running parallel to the tool axis, they are versatile and suitable for both hand and machine operations. However, because they don’t control chip flow direction, they are best for short-chipping materials such as cast iron or brittle metals.
Straight flute taps provide precise cutting and are often used when working with general-purpose threading operations where chip evacuation is not critical.
4. Pipe Taps
Pipe taps are specialized types of thread cutting taps designed to cut tapered threads, typically for sealing joints in fluid systems. They are commonly used for National Pipe Thread (NPT) or British Standard Pipe (BSP) applications, ensuring leak-proof fits for gas, liquid, and hydraulic systems.
Because of their tapered geometry, pipe taps form a tight mechanical seal as they are threaded into the mating part, making them indispensable in plumbing, oil, and gas industries.
Applications and Material Considerations
Selecting the right types of thread cutting taps depends on several factors: material hardness, hole depth, and desired surface finish. Each tap type is engineered for particular materials and machining environments.
- Spiral Flute Taps: Ideal for soft materials like aluminum, copper, and plastics.
- Spiral Point Taps: Suitable for steels, stainless steel, and tough alloys.
- Straight Flute Taps: Best for cast iron or brittle materials.
- Pipe Taps: Used for sealing applications in pipes and fluid fittings.
For maximum tool performance, proper lubrication, coolant application, and machine settings are essential. Misapplication of types of thread cutting taps can lead to premature wear, thread inaccuracies, and increased production costs.
MisolGroup – Precision Manufacturer of Thread Cutting Taps
When it comes to world-class types of thread cutting taps, MisolGroup sets the standard for excellence. Since its founding in 2005, MisolGroup has become a leading Chinese manufacturer of high-performance thread cutting tools, integrating R&D, production, and global distribution into one seamless operation.
Advanced Manufacturing & Uncompromising Quality
MisolGroup’s commitment to quality begins at the source. The company operates a full in-house production system, utilizing advanced CNC automation, vacuum heat treatment, and precision testing facilities. This ensures every tap produced meets the highest international standards.
Only premium high-speed steels (HSS) such as M35, DV3, and M2 are used to produce durable tools capable of withstanding extreme cutting conditions. This focus on quality extends to their ISO-certified manufacturing and inspection systems.
R&D Expertise
With nearly two decades of experience, MisolGroup’s R&D department continuously innovates new designs and applications across all types of thread cutting taps. Their engineers focus on improving chip evacuation, surface finish, and wear resistance to meet the demands of modern machining.
Engineered for Demanding Industries
MisolGroup’s thread cutting taps are designed for performance in key industries, including:
- Automotive and Aerospace
- Defense and Electronics
- Mold and Die Manufacturing
Their product range performs exceptionally across materials such as cast iron, carbon steel, stainless steel, and non-ferrous alloys. Regardless of the application, MisolGroup ensures reliability, precision, and consistency in every tap.
A Partnership Built on Reliability
Backed by a strict ISO-certified quality management system, MisolGroup guarantees product uniformity and on-time delivery. They are recognized globally as a trustworthy and contract-compliant supplier committed to long-term partnerships.
Our Products
| Product Type | Description |
|---|---|
| Carbide Taps | Exceptional hardness and wear resistance for high-speed production lines. |
| Nut Taps | Designed for tapping nuts and short threads with efficiency. |
| Pipe Taps | Ideal for sealing tapered threads in hydraulic and gas systems. |
| Spiral Flute Taps | Perfect for blind holes in soft and medium materials. |
| Spiral Point Taps | Optimized for through holes in steel and harder alloys. |
| Straight Flute Taps | Reliable for cast iron and general-purpose threading. |
For industries seeking dependable, precise, and high-quality types of thread cutting taps, MisolGroup is your trusted manufacturing partner. Their innovation and dedication to quality ensure consistent results in every application.
Comparison Table: 4 Types of Thread Cutting Taps
| Tap Type | Best For | Material Compatibility | Chip Control |
|---|---|---|---|
| Spiral Flute Tap | Blind holes | Soft materials (Aluminum, Copper) | Pulls chips upward |
| Spiral Point Tap | Through holes | Steel, Stainless steel | Pushes chips forward |
| Straight Flute Tap | General purpose | Cast iron, brittle metals | No directional control |
| Pipe Tap | Thread sealing | Fluid and gas fittings | Forms tapered threads |
FAQs About Types of Thread Cutting Taps
1. What are the main types of thread cutting taps?
The four primary types of thread cutting taps are Spiral Flute Taps, Spiral Point Taps, Straight Flute Taps, and Pipe Taps. Each serves a unique purpose depending on the hole type and material.
2. How do I select the right tap for my application?
Consider the hole type (blind or through), material hardness, and machine capabilities. For example, use Spiral Flute Taps for blind holes and Spiral Point Taps for through holes.
3. Are all types of thread cutting taps suitable for stainless steel?
Not all. For stainless steel, Spiral Point or specially coated Spiral Flute Taps provide the best performance and chip evacuation.
4. What makes MisolGroup different from other tap manufacturers?
MisolGroup integrates R&D, production, and testing under one roof, ensuring full quality control. Their high-speed steel materials (M35, DV3, M2) and strict ISO certification ensure superior tool longevity and performance.
5. Can MisolGroup provide customized thread cutting solutions?
Yes. MisolGroup offers OEM and customized thread tap production tailored to specific industry requirements, including unique thread geometries and coatings.
